A static discharge of a few thousand volts is enough to punch through the gate oxide of a MOSFET and kill a board without leaving a mark. The fix costs very little, but the mats on the market range from genuinely well-built grounded surfaces to soft vinyl that burns a hole the first time a hot iron touches it. That is why picking from a listing photo alone is a mistake.
This roundup covers the best antistatic mats for electronics work right now, ten of them, judged on the only things that matter at the bench: a published surface resistivity figure, real two-layer construction where it counts, heat tolerance, size, and whether the grounding hardware actually ships in the box. We updated the guide in 2026 after working through the current lineup.
Three tiers came out of the testing. Under roughly thirty dollars you get competent mats for phone and laptop repair, though heat tolerance is often the weak point. The middle of the range, around thirty to eighty dollars, is where the balance of size, grounding kit and durability sits and where most serious hobbyists and repair shops land. Above ninety dollars you are buying bench-grade rubber built for high-temperature soldering and long service life.
Table of Contents
Top 3 Antistatic Mats for Electronics Work
iFixit Portable Anti-Static Mat
- 10^7-10^9 ohm resistivity
- Folds flat for transport
- 10 mm snap plus wrist strap
StarTech Anti-Static ESD Mat
- Static dissipative PVC foam
- Only 0.1 inch thick
- Built to IBM and military specs
HPFIX Silicone Soldering Mat
- Rated to 932F
- Numbered screw compartments
- Full grounding kit included
The iFixit mat took the top spot because it is the only one here that combines a published resistivity range, a proper grounding snap, an adjustable wrist strap and a form factor small enough to travel. The StarTech mat is the value pick for anyone who wants a low-profile desktop surface without thinking about it. The HPFIX silicone mat wins the budget slot for anyone whose bench sees a soldering iron on a regular basis.
Quick Comparison: Every Antistatic Mat in This Roundup
| Product | Specifications | Action |
|---|---|---|
| iFixit Portable Anti-Static Mat |
|
Check Latest Price |
| StarTech Anti-Static ESD Mat |
|
Check Latest Price |
| HPFIX Silicone Soldering Mat |
|
Check Latest Price |
 Bertech 2059T ESD High Temperature Mat Kit |
|
Check Latest Price |
 LUTICO Anti Static ESD Mat 17 x 25 Inch |
|
Check Latest Price |
 Weller ESD Mat 900 x 600 mm |
|
Check Latest Price |
 MWRF Source ESD Mat Kit 2 x 4 ft |
|
Check Latest Price |
 Static Care RubberStat Dual Layer Kit |
|
Check Latest Price |
 Bertech ESD Soldering Mat Kit 18 x 24 Inch |
|
Check Latest Price |
 Static Care ESD Workstation Kit 16 x 24 Inch |
|
Check Latest Price |
Two things stand out in that table. Every mat except the StarTech ships with grounding hardware, and only three of the ten publish a surface resistivity figure that a buyer can actually verify.

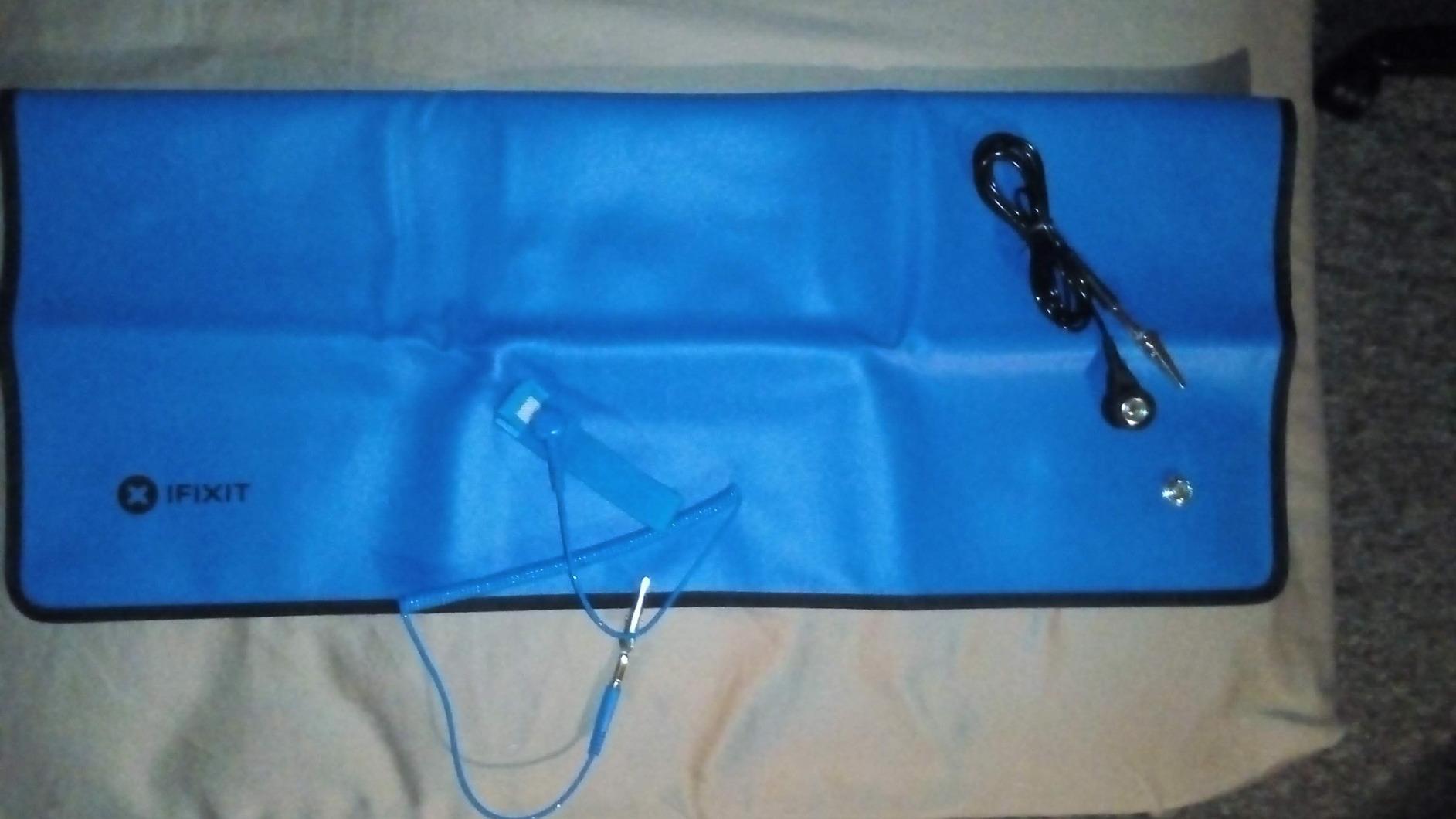

1. iFixit Portable Anti-Static Mat: Best Overall for Electronics Work
iFixit Portable Anti-Static Mat – ESD Pad, Wrist Strap, Grounding Cord
Resistivity 10^7-10^9 ohms
60 x 60 cm
Folds flat, 0.25 kg
Pros
- Published resistivity in the correct dissipative band
- Grounding snap and adjustable wrist strap both in the box
- Folds small enough to carry between benches
- Lifetime guarantee
Cons
- Nylon and polymer scorch before rubber does
- 60 cm surface is small for full-size builds
- Not water resistant
This is the mat I keep reaching for. The resistivity is published at 10^7 to 10^9 ohms, which sits squarely in the band that ANSI/ESD STM4.1 asks a worksurface to hold, and reviewers consistently confirm the grounding workflow is a five-second job: clip the cord, seat the 10 mm snap, wear the strap.
The 60 cm square is roughly 24 by 24 inches, which sounds small until you realise it folds into a package the weight of a paperback. For phone repair, laptop swaps and any bench that is not a permanent desk, that trade is worth making. Users on Reddit consistently name iFixit as the mat they trust when they want a published spec rather than a marketing claim.
What you give up is heat margin. Nylon and polymer sit well below silicone and rubber in scorch resistance, so this is not the mat I would use for a bench where hot solder lands often. It also will not survive a spill, which matters more than it sounds on a crowded bench.
Worth pairing with a proper soldering station setup, since you will still want a heat-resistant surface for rework. If your work is travel-heavy rather than heat-heavy, this stays the pick.
When this mat makes sense
Pick it when you move between benches, repair phones or laptops, or want the reassurance of a documented spec. The included 1.8 m cord and adjustable strap mean you are not hunting for a second accessory.
When to skip it
Skip it if your day involves sustained hot-air rework or heavy solder work, or if you need a full ATX motherboard laid out flat. In both cases the surface area or the heat rating will disappoint.

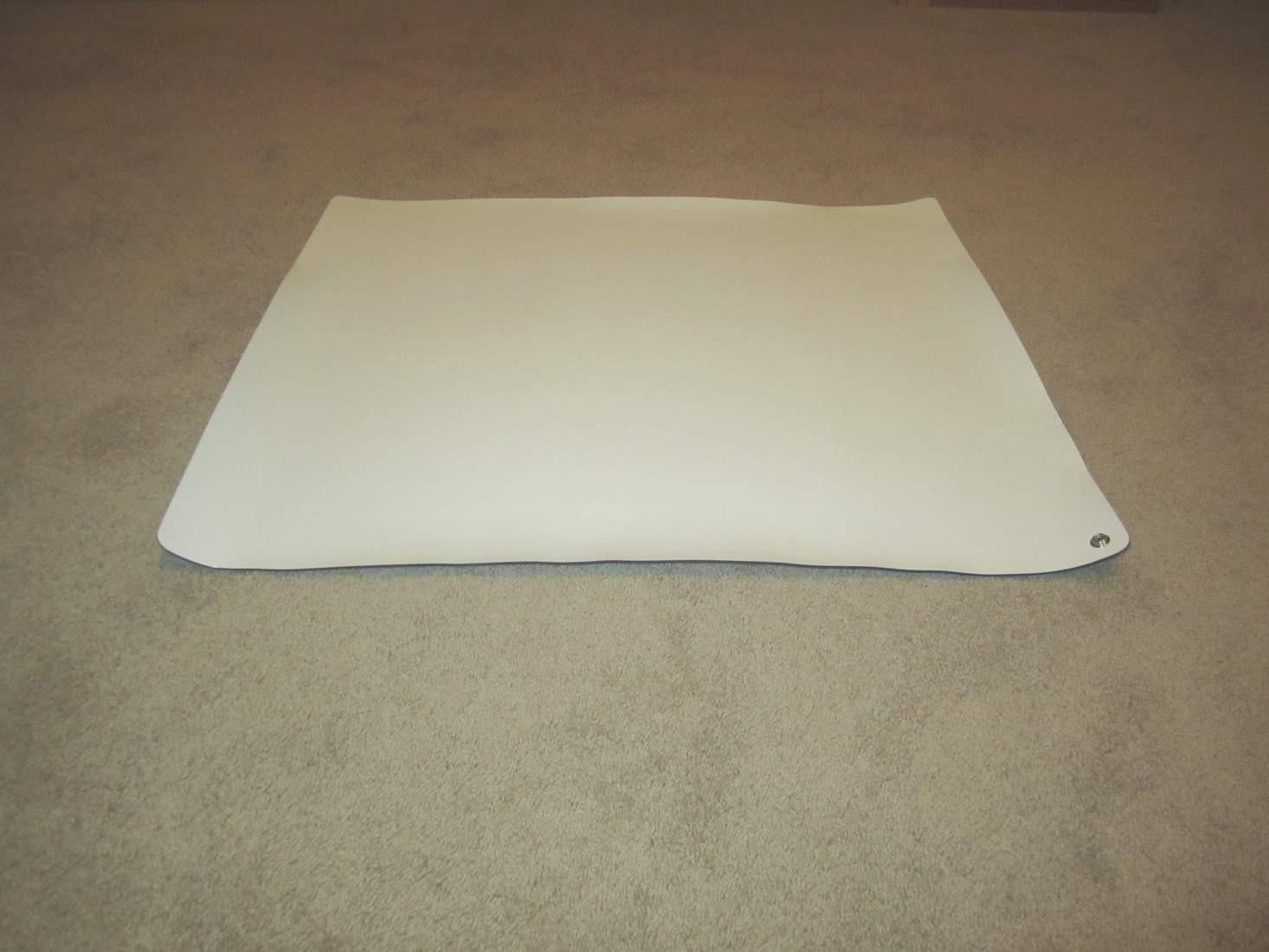

2. StarTech Anti-Static ESD Mat: Best Value Desktop Mat
StarTech Anti-Static ESD Mat for Home or Work, Beige, TAA
Static dissipative PVC foam
24 x 27.5 inch
Only 0.1 inch thick
Pros
- Dissipative rather than conductive so no rapid discharge risk
- Low profile slides under existing desk gear
- Built to IBM and US military static specs
- Two year warranty
Cons
- Mat only - wrist strap and cord sold separately
- Soft PVC foam is poor for heavy soldering
The StarTech M3013 is the mat you put down next to a keyboard and forget about. At 0.1 inch thick it slides under a monitor stand or a docking station without lifting anything, which no other mat in this roundup manages. It is described as static dissipative rather than conductive, and that distinction matters for the reasons covered in the standards section below.
Two thousand four hundred ninety-nine ratings averaging 4.6 is unusual volume for a component this boring, and the reviews describe exactly what you would expect: a beige pad that quietly does its job on a home or office desk. There is no wrist strap in the box and no cord, so you need to add the StarTech SWS100 or a similar strap if you handle bare semiconductors.
Built to IBM and US military static control specifications is a meaningful claim, though the listing does not publish a surface resistivity figure in ohms, which is the one thing we would like to see. Treat the spec reference as a quality signal rather than a number you can check against a meter.
PVC foam is a soft surface. It wipes clean easily, but it is a poor platform for a soldering iron tip left to cool, and forum users consistently report rubber holding heat far better than vinyl. Use this one for assembly and disassembly, not for rework.
When this mat makes sense
Ideal for a PC build, a home electronics corner, or any desk where the real constraint is space. The low profile and the two year warranty make it an easy recommendation for someone setting up a first bench.
When to skip it
Skip it if you solder on the same surface, or if you want a wrist strap in the box and do not want to buy one separately. It is also the mat most likely to disappoint anyone expecting a bench-grade rubber surface.

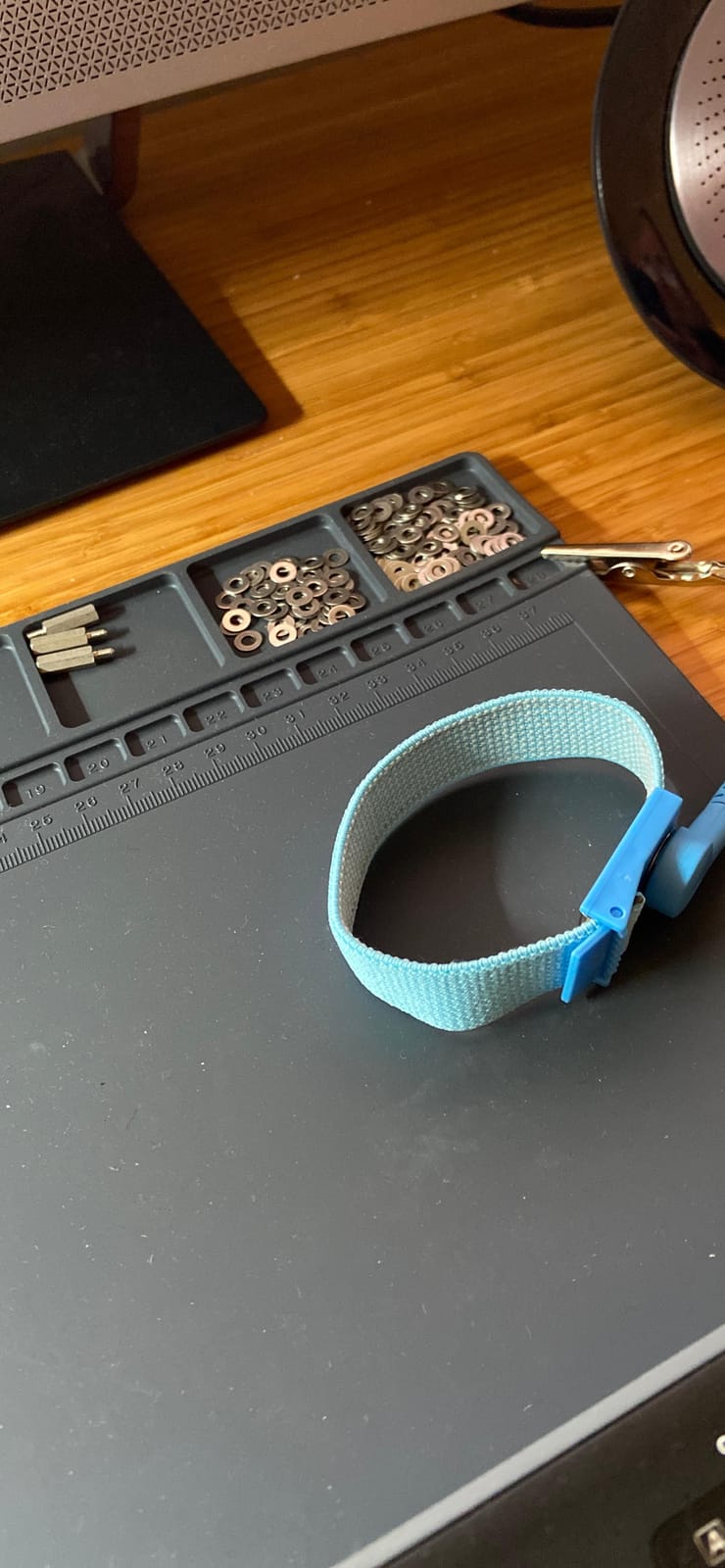

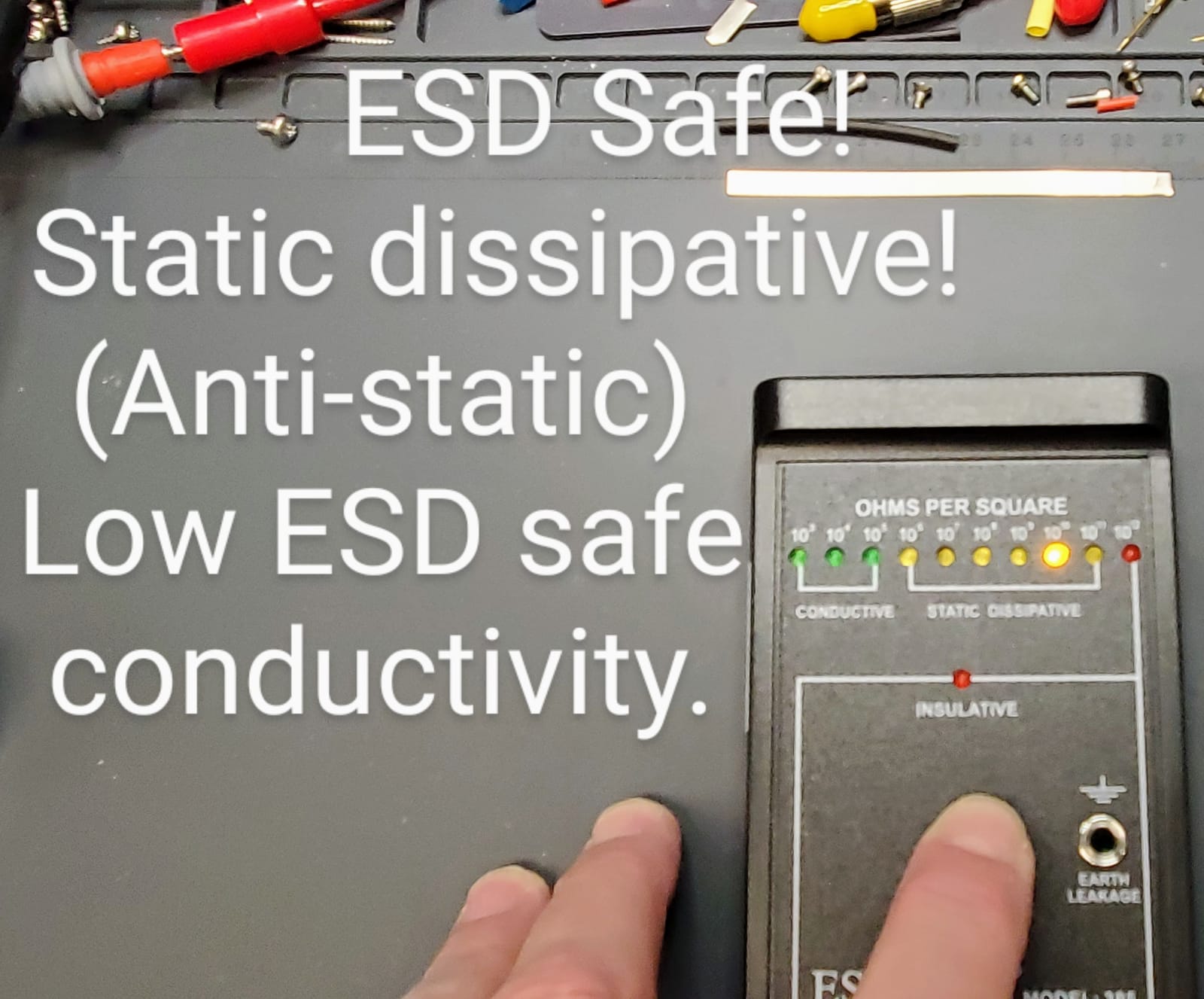

3. HPFIX Silicone Soldering Mat: Best Budget Pick for Soldering
Anti-Static Mat ESD Safe for Electronic Includes ESD Wristband and Grounding Wire, HPFIX Silicone Soldering Repair Mat 932°F Heat Resistant for iPhone iPad iMac, Laptop, Computer, 15.9” x 12” Grey
Rated to 932F
15.9 x 12 inch
10^6-10^8 ohms
Pros
- Silicone takes hot solder and hot air rework
- Numbered compartments for screws and parts
- Mat strap cord and plug all included
- Non-slip surface that rolls up for storage
Cons
- Working area is tight for large motherboards
- Included grounding cord runs short to a wall outlet
- Soft silicone gives little drop protection
This solves the problem that frustrates most beginners: one mat that is both heat resistant and actually rated for static. The 932F silicone surface shrugs off solder splash and hot air rework, and the published resistivity of 10^6 to 10^8 ohms is a real dissipative figure you can verify with a meter.
The whole grounding chain ships in the box, mat, ESD wristband, grounding cord and grounding plug, which removes the two most common setup mistakes. Reviewers describe it as the kit that made their bench usable immediately, citing laptop battery swaps, phone repairs and vintage computer restoration as typical jobs.
Size is the compromise. At 15.9 by 12 inches it handles a laptop board, a phone, or a camera comfortably, and the built-in ruler plus numbered compartments are genuinely useful for keeping screws organised during a teardown. It is not a full-size motherboard mat.
The included cord is short, so plan on where your ground point is before you start. And because silicone is soft, dropped tools will not be forgiven. This is a soldering surface first, a repair surface second.
When this mat makes sense
Best for a hobbyist bench that sees regular soldering, or a phone and laptop repair kit. The compartment layout and included hardware make it a strong first ESD purchase.
When to skip it
Skip it for full-size PC builds, and for anyone with a stubborn ground point far from the desk. It is also the wrong choice if you want a mat with a long service life under daily commercial use.

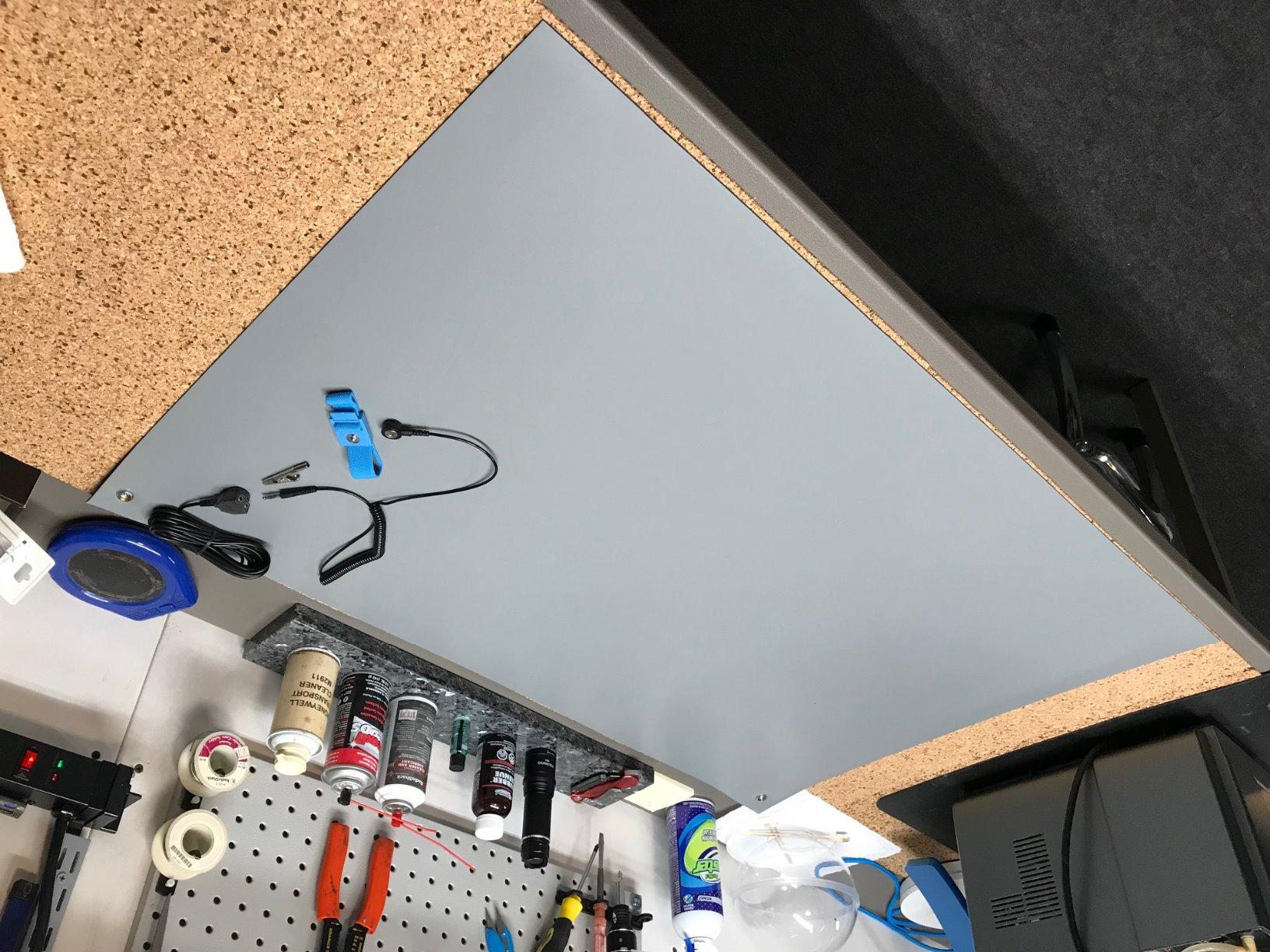

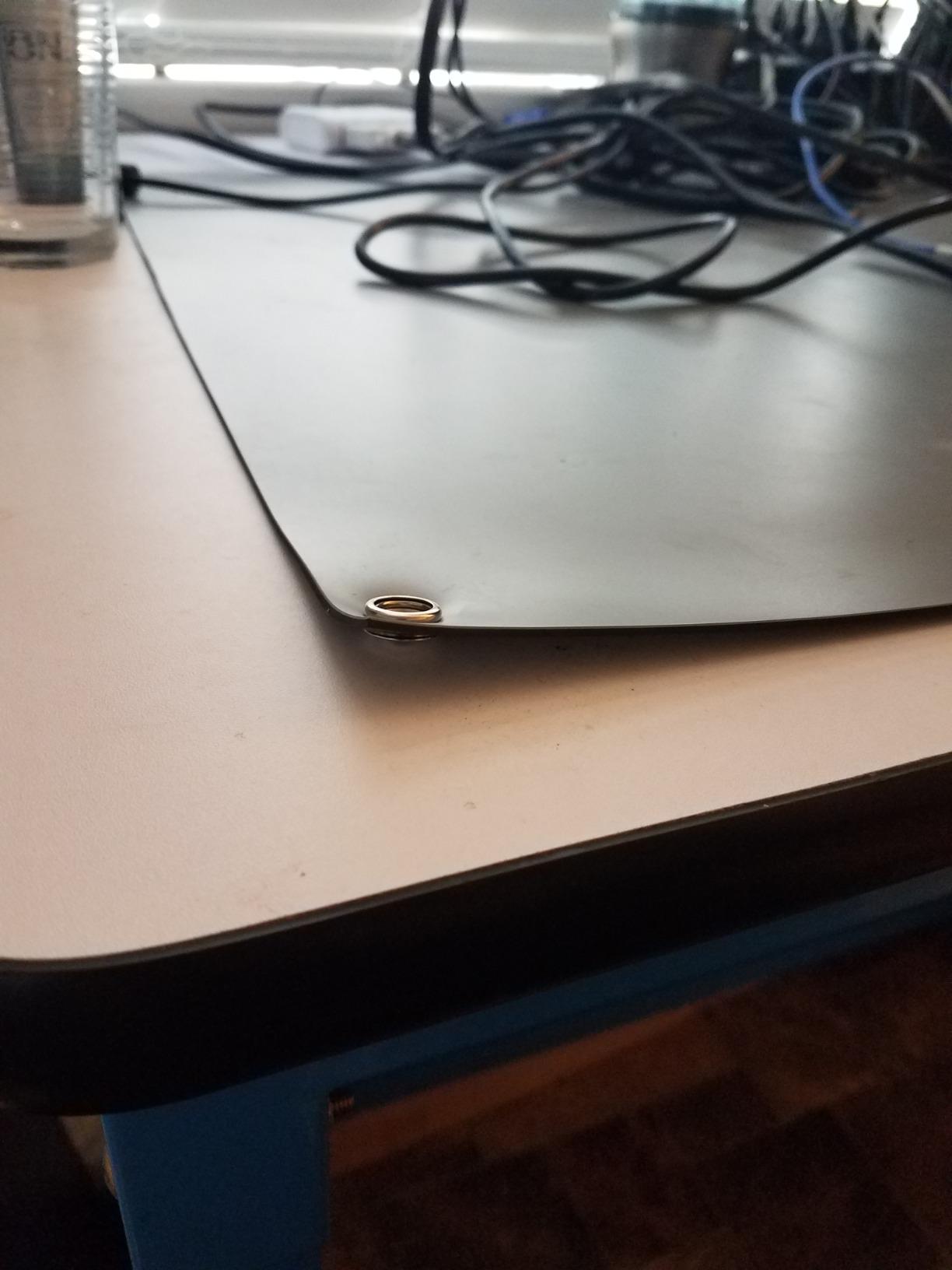

4. Bertech 2059T ESD High Temperature Mat Kit: Best Premium Rubber Bench Mat
Bertech-2059T ESD High Temperature Mat Kit, 2 Feet Wide x 4 Feet Long x 0.08 Inches Thick, Blue, Includes a Wrist Strap and Grounding Cord, RoHS and REACH Compliant (Assembled in USA)
Two-ply rubber, 2 x 4 ft
Charge decay under 0.01 s
Resists solder, oil and solvents
Pros
- Reviewers measure 10^6 to 10^8 ohm readings themselves
- Charge decay under 0.01 seconds
- Handles solder drips and hot air rework
- Button snaps on neighbouring corners
- RoHS and REACH compliant
Cons
- Arrives rolled and needs days to lie flat
- Strong rubber odour at first
- Wrist strap ends in an alligator clip
This is the mat professionals describe when they talk about bench grade. The 2059T is a two-ply rubber build with a conductive layer under a static dissipative top, tested at 2 by 10e6 to 10e8 ohms point to point and 8 by 10e6 to 10e8 ohms to a ground point. Several reviewers with electronics backgrounds report measuring it themselves and confirming those figures.
Charge decay under 0.01 seconds and a tensile strength of 1000 psi are the numbers that matter on a production bench, because they describe how quickly charge leaves the surface rather than how much the mat resists. The kit includes a wrist strap and a 15 foot ground cord, which is enough reach for most benches without an extension.
Oil, grease, solvents, hot solder and soldering iron contact are all on the resistance list, and owners describe it surviving years of daily use without marking. It is assembled in the USA and compliant with RoHS and REACH.
The complaints are physical rather than electrical. It arrives rolled and holds edge curl for a while, it smells strongly of rubber for the first few days, and the wrist strap terminates in an alligator clip rather than a button snap, which means you deploy the long cord for a proper grounded bench.
When this mat makes sense
Right choice for a repair shop, an electronics assembly bench, or a hobbyist who wants one mat that will last a decade. The 2 by 4 foot footprint holds a board and a scatter of parts at once.
When to skip it
Skip it on a small desk, and skip it if you are bothered by a rubber smell in an enclosed room. It is also the heaviest spend in this roundup, which is hard to justify for occasional tinkering.

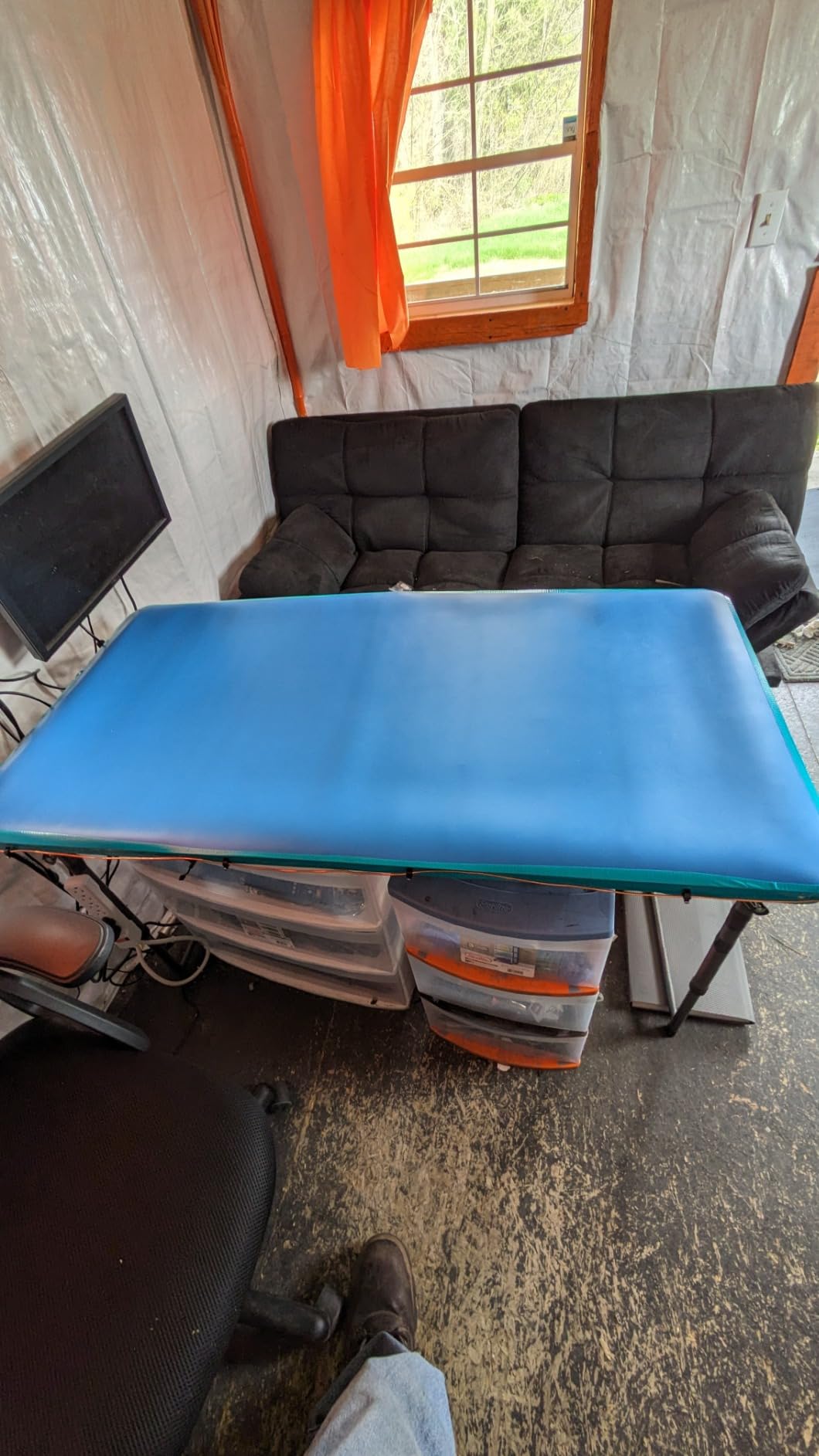

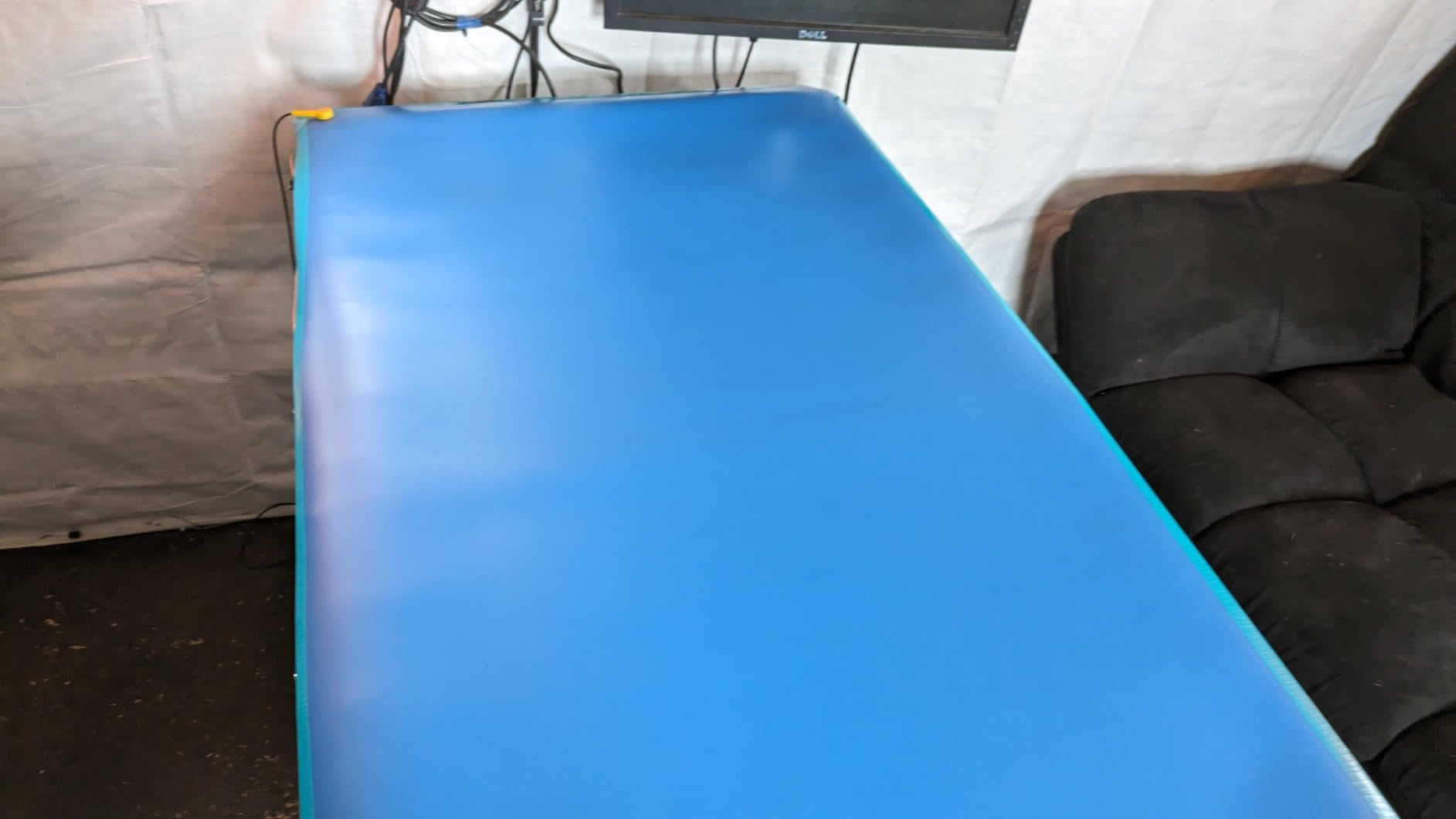

5. LUTICO Anti Static ESD Mat 17 x 25 Inch: Best Two-Layer Mat Under Thirty Dollars
Anti Static ESD Mat for Electronics Repair, 17″X25″, Grounding Kit
Two-layer composite
17 x 25 inch
10^6-10^8 ohms surface
Pros
- Dissipative top over conductive bottom - the standard build
- 17 x 25 inch gives room for a mid-size board
- Wrist strap and coil cord and ring terminal ground cord included
- Low cost for a grounded two-layer mat
Cons
- No outlet ground adapter in the box
- 180F upper temperature rating is low for sustained soldering
- Rating is the weakest in this group
The LUTICO JDP does something cheaper mats usually skip: it puts a conductive layer under the dissipative top. That separation is what professional two-layer construction does, keeping stored charge away from the working surface until the ground cord bleeds it away.
At 17 by 25 inches it is a genuinely useful size, larger than most repair mats and large enough for a mini-ITX board with parts spread around it. Grounding hardware is included, a wrist strap, a coil cord and a common-point ground cord with a ring terminal.
Surface resistivity is published at 10^6 to 10^8 ohms with volume resistivity at 10^5 to 10^8, so you have real numbers to check. That is unusual at this price and it is the main reason to look past the 4.2 rating.
The 180F upper temperature rating is the limitation that defines this mat. It handles general repair, component swaps and light soldering, but it is not a surface for a hot air station sitting still. There is also no outlet ground adapter in the box, so budget for that small extra part.
When this mat makes sense
Good fit for PC, tablet and phone repair where the board is the priority and the mat is not being used as a soldering surface. The published resistivity makes it easy to justify to anyone who asks questions.
When to skip it
Skip it for rework, for anything involving sustained heat, and for buyers who want zero assembly required before the mat is grounded. The 4.2 rating reflects real inconsistency in the finish.
6. Weller ESD Mat 900 x 600 mm: Best Mat for a Dedicated Soldering Bench
Weller ESD Mat, Blue 900 x 600 – T0051403699
900 x 600 mm surface
Two 10 mm press studs
Heat, solder chemical and oil resistant
Pros
- Backed by a long-established soldering tool maker
- Dual press studs allow grounding from either hand
- Resists heat solder chemicals and oil
- Permanently elastic and abrasion resistant
- RoHS compliant
Cons
- Mat only - no strap or cord included
- Heaviest relative to its size at 3.88 pounds
- Modest review volume
Weller built its reputation on soldering irons, and this mat is designed around that reality. The 600 by 900 mm work surface is generous, and the two 10 mm press studs are fitted so you can ground from either hand position, which is a small design decision that removes daily friction.
Resistance to heat, solder chemicals and oil is stated plainly, and the surface is described as permanently elastic and abrasion resistant. Owners treat it as the professional default and report it staying comfortable across long sessions.
The catch is that it is a mat only. No wrist strap and no ground cord ship in the box, so budget for those separately unless your bench already has a grounding network. At 3.88 pounds it is also the heaviest mat here relative to its size, which makes repositioning annoying.
When this mat makes sense
Right call for a dedicated soldering bench where the mat stays put and someone else supplies the grounding gear. Brand recognition carries real weight in a shop that has to justify purchases.
When to skip it
Skip it if you want a complete kit in one box, or if you need to move your work surface regularly. The weight works against portability.
7. MWRF Source ESD Mat Kit 2 x 4 ft: Best for Full-Size Desktop Builds
MWRF Source™ ESD Mat Kit with Wrist Strap and Grounding Cord (2 FT x 4 FT, Blue)
2 x 4 ft, 0.12 inch thick
Nitrile rubber
10e9-10e10 ohms
Pros
- Thickest nitrile rubber in this group
- 2 x 4 ft surface fits a full motherboard laid flat
- Kit includes wrist strap and 10 ft ground cord
- Owners report no static events on full builds
Cons
- Strong rubber odour that lingers for days
- Strap lead can unplug if you reach too far
- 7.39 pounds makes it awkward to move or roll
The MWRF Source kit is built around one idea: give a desktop builder enough flat surface to lay out a whole system. Two by four feet of 0.12 inch nitrile rubber is the thickest mat in this roundup, and thickness is what stops a stray screwdriver from denting a board laid directly on the surface.
The kit includes the mat, a wrist strap and a 10 foot ground cord, which is everything needed to get started. Reviewers describe assembling complete systems with no static events at all, and the scuff resistance of nitrile rubber is well suited to a build that involves dragging parts across the surface.
One specification deserves attention. The published surface resistivity is 10e9 to 10e10 ohms, which sits at the upper edge of the dissipative range and is higher than most mats here. That is a slower bleed-off than a 10e6 to 10e8 mat, so for genuinely sensitive semiconductors the faster-draining mats are the better pairing.
The recurring gripes are physical. The rubber smell is strong for the first several days, and the strap lead is short enough that leaning back can pull it off the mat snap.
When this mat makes sense
Best for someone building or servicing full-size desktops who wants the whole chassis footprint on a grounded, cushioned surface. Thick rubber also makes it a decent secondary soldering surface.
When to skip it
Skip it for MOSFET and CMOS work where fast charge decay matters more than thickness, and skip it if you have to move your bench around. Seven and a half pounds is not portable.

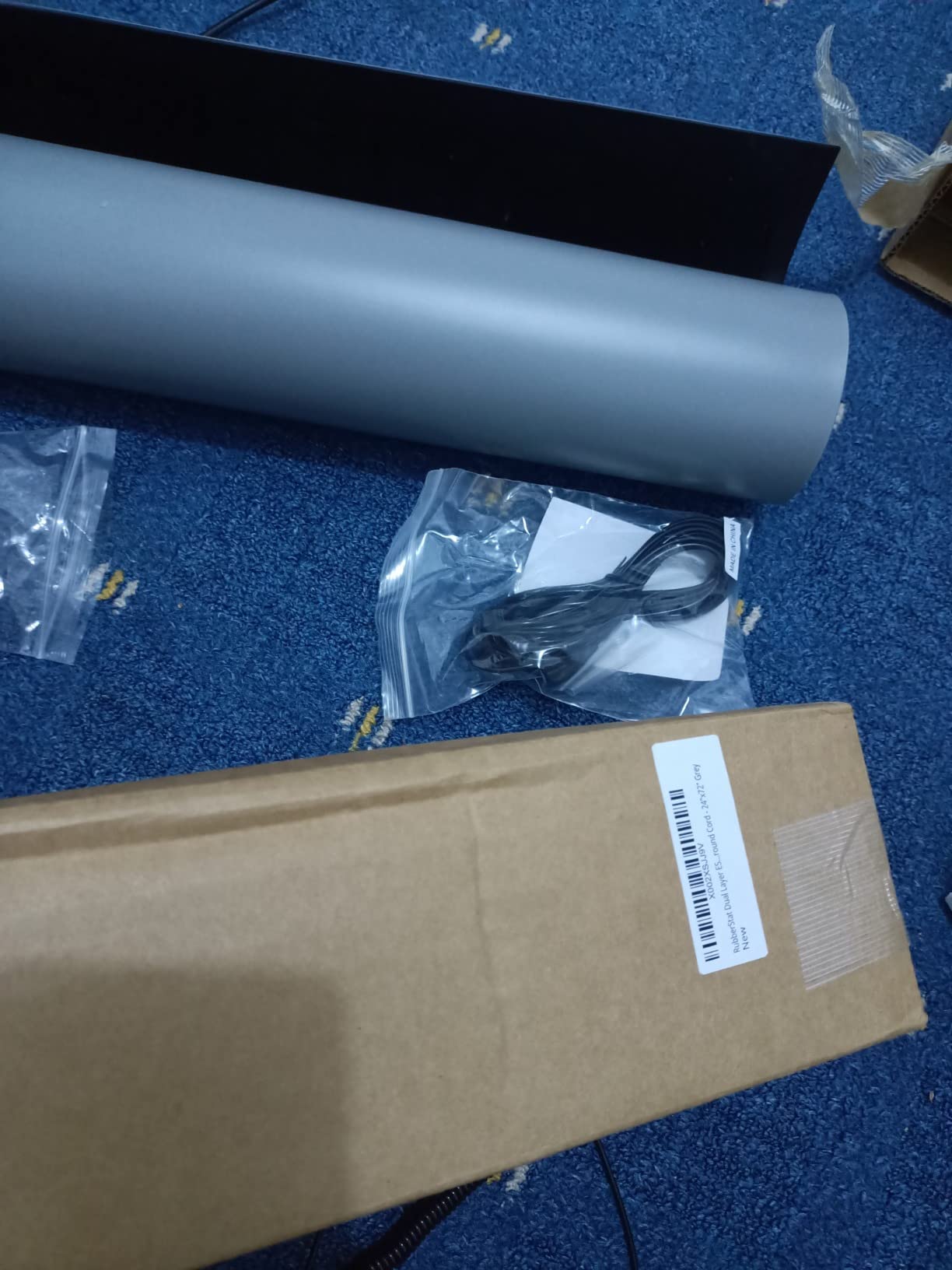

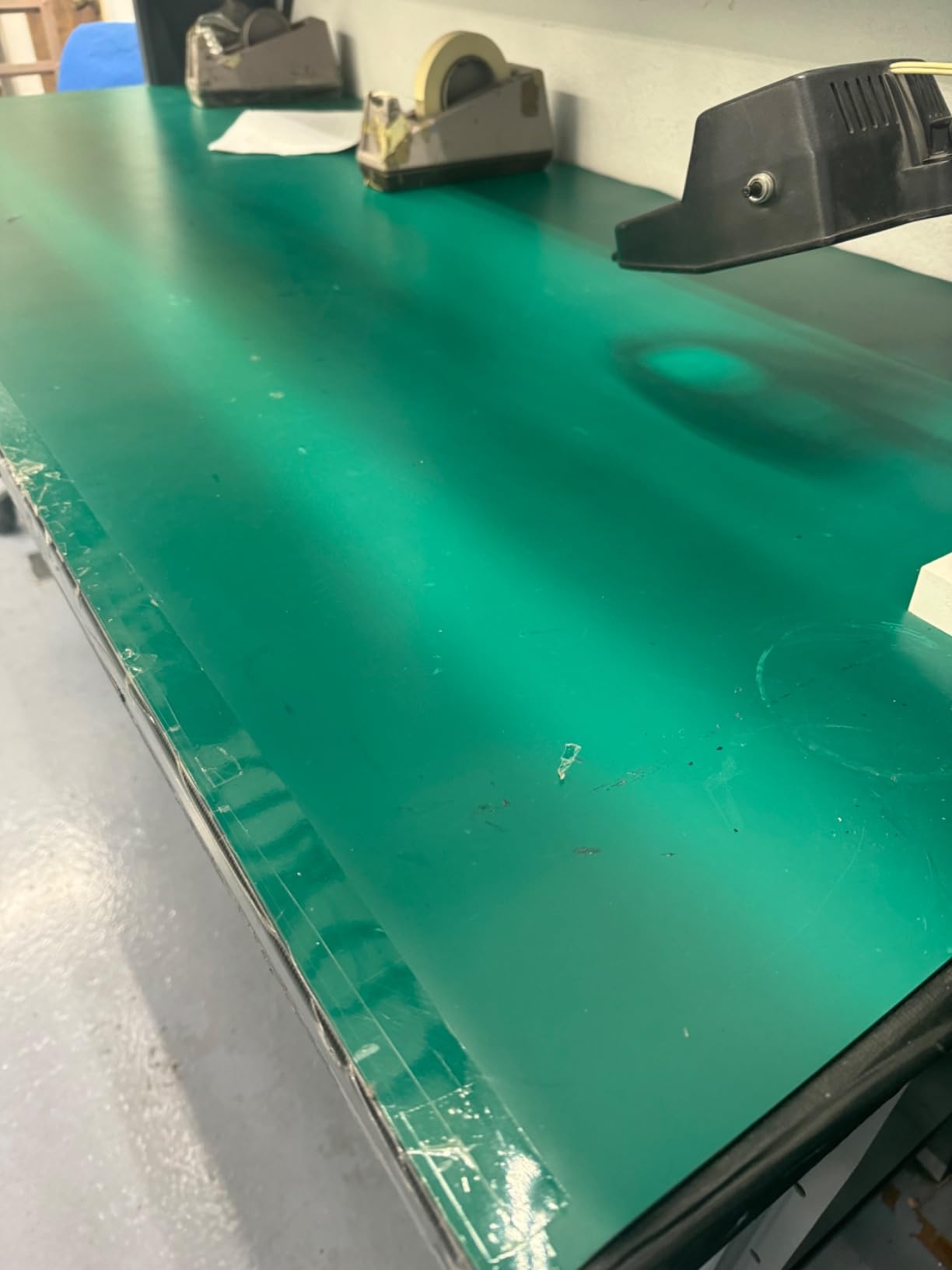

8. Static Care RubberStat Dual Layer Kit: Best for ANSI/ESD S20.20 Compliance
RubberStat Dual Layer ESD Compliant Workstation Rubber Table Mat Kit, Soldering, Cell Phone Repair, with Wrist Strap Set and Ground Cord – 24″x48″ Blue
Dual layer rubber, 24 x 48 inch
Meets ANSI/ESD S20.20 resistance
Bundled strap and 15 ft cord
Pros
- Explicitly meets ANSI/ESD S20.20 point to point and point to ground
- Standard dissipative over conductive build
- 24 x 48 inch fits a full motherboard and parts
- Resists solder and solvents and scratching
- Kit includes adjustable strap and 15 ft cord
Cons
- Large heavy mat that needs a dedicated bench
- Colour can run lighter than the listing image
- Rubber arrives rolled and needs time to relax
If your shop has to answer an auditor, this is the mat to buy. Static Care states that the RSD82448LB meets ANSI/ESD S20.20 point to point and point to ground resistance requirements, which is the compliance language that matters when an ESD control program is being documented.
The build is the standard professional pattern: a static dissipative rubber top layer over a black conductive rubber bottom layer, at 0.080 inch thick and 24 by 48 inches. That footprint is the reason reviewers keep recommending it, because it is wide enough to lay out a full desktop build with parts laid out around it.
Hot solder, soldering irons, most solvents, scratching and gouging are all on the resistance list, which is what makes it usable as both an assembly surface and a soldering surface. The kit bundles the mat, an adjustable wrist strap and a 15 foot ground cord.
Fit is the trade. A 24 by 48 inch mat needs a real bench, and colour varies between the listing image and what arrives on some variants. As with any heavy rubber mat, it comes rolled and needs time to lie flat before you measure resistance on it.
When this mat makes sense
Correct for a compliance-minded shop, an electronics manufacturing bench, or a serious hobbyist who wants documented standard compliance on the bench. Also available across a wide range of sizes and colours.
When to skip it
Skip it for a compact desk, and skip it if the compliance claim is not something you need. You are paying for documentation value that a well-built mat without the claim does not provide.
9. Bertech ESD Soldering Mat Kit 18 x 24 Inch: Best Compact Pro Soldering Kit
Bertech ESD Soldering Mat Kit, 18 Inches Wide x 24 Inches Long x 0.06 Inches Thick, Blue, Includes a Wrist Strap and Grounding Cord, RoHS and REACH Compliant (Assembled in USA)
18 x 24 inch, 0.06 inch thick
Two-layer blue over black rubber
1 x 10e3-10e5 ohms
Pros
- Two-layer dissipative over conductive rubber
- Resists oil and grease and solvents and solder
- Kit includes wrist strap and alligator clip and cord
- Assembled in the USA
- RoHS and REACH compliant
Cons
- Thinnest profile here at 0.06 inch so least cushioning
- Mats ship rolled and need time to lie flat
- Smaller than a full bench mat
The 2059S is the smaller sibling of the Bertech kit above, and it keeps the same two-layer blue-over-black rubber construction in a footprint that fits a normal desk. Resistance to ground and point to point is published at 1 x 10e3 to 10e5 ohms, which is a lower-impedance band than the 2059T.
It resists oil, grease, most common solvents, hot solder and soldering iron contact, and it is aimed squarely at high-temperature soldering alongside aerospace assembly, fibre optics and medical assembly work. The kit includes a wrist strap with an alligator clip and a ground cord.
At 0.06 inch it is the thinnest mat here, so it does the least to protect a board from a dropped driver. Owners are broadly positive, with fewer and milder complaints than the entry-level kits. As with the other rubber mats in this roundup, it arrives rolled and needs to relax before use.
When this mat makes sense
Suits a soldering-focused bench that does not have room for a 2 by 4 foot mat but wants professional construction. It is also a solid second mat for a two-surface setup, one for ESD and one for heat.
When to skip it
Skip it if you need cushioning for delicate board work, and skip it if you want a large assembly surface. The thin profile is the deciding factor here.

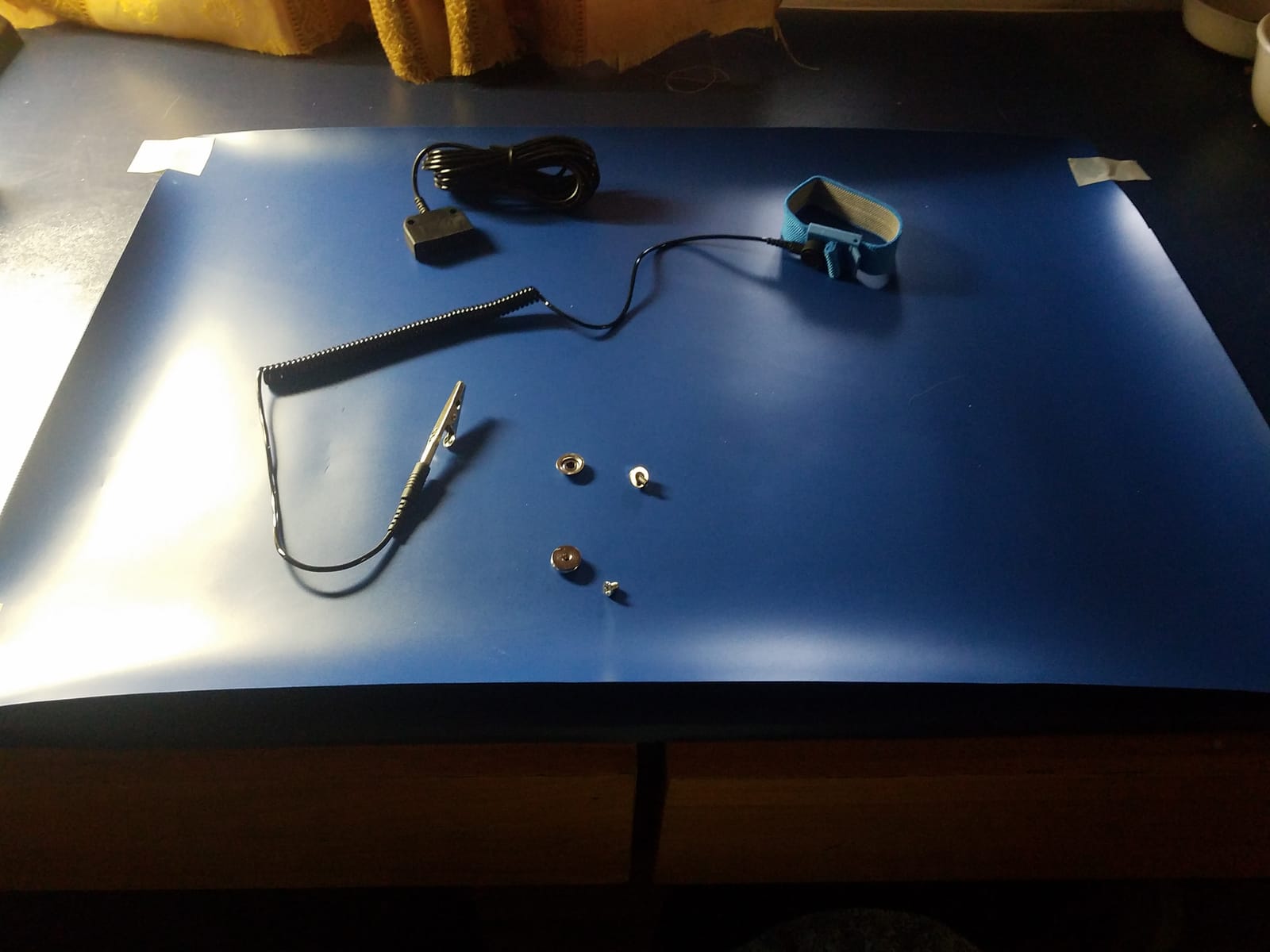

10. Static Care ESD Workstation Kit 16 x 24 Inch: Best Complete Grounding Kit
Static Care ESD Compliant Mat Workstation Kit – 16″x24″x.060″, Wrist Strap Set, Ground Cord, Universal Snap Kit, Easy to Use Outlet Adapter,Computer/Cellphone Repair Kit, Soldering Mat – NASA Blue
16 x 24 inch, 0.060 inch
Conductive backing and dissipative top
Outlet adapter and snap kit included
Pros
- Most complete kit here with strap and 15 ft cord and adapter and snap kit
- Conductive layer under a dissipative top layer
- Portable 16 x 24 inch size for repair benches
- Light at one pound and easy to move
Cons
- 16 x 24 inch is tight for full-size desktop builds
- 0.060 inch thickness does little for drop protection
- Lowest rating here with a long tail of one-star reviews
The reason this kit is on the list is the box contents. You get the mat, a wrist band with a 4 mm snap and 6 foot coil cord, a 15 foot ground cord, a USA banana jack outlet adapter and a universal snap kit with multiple screw sizes for installing the ground point. That last item is the one almost no competitor includes, and it is the part that makes grounding actually work first time.
Construction is the standard pattern, a conductive layer backing a static dissipative top layer, at 16 by 24 inches and 0.060 inch. Reviewers highlight that the outlet adapter and snap kit are actually present, which removes the guesswork from setup.
Sentiment is positive but noticeably more mixed than the specialist mats, with 11 percent one-star reviews pointing to quality inconsistency. The 16 by 24 inch area is fine for phone and laptop work and tight for a full ATX build.
The thin profile means it does little to absorb the impact of dropped tools, which is the main functional cost of keeping the footprint small. If you want one kit that removes every setup mistake and you mostly work on portable devices, this is the one.
When this mat makes sense
Best for a phone and laptop repair bench, or a first grounded setup where you do not want to source an adapter and a snap separately. Light and easy to carry between work areas.
When to skip it
Skip it for full-size PC builds, and consider a specialist mat instead if build consistency matters more to you than kit completeness.
Do You Even Need an Antistatic Mat?
For some hobby work, honestly, no. The most repeated position across electronics forums is that a bare wooden desk protects bare semiconductors perfectly well, because wood is a poor conductor and charge drains slowly rather than snapping. Several experienced users on the Arduino forum say they have never lost a chip to static at all.
That position is not wrong, and it is worth stating plainly because no retail listing will tell you. What a mat adds is a controlled path and a measurable resistance value. What it does not add is protection you were never at risk of losing in the first place.
If you are still deciding whether the bench is worth building, our circuit building kits for teens guide covers a gentler way to get started.
The failure that actually happens is documented on the Arduino forum: someone walked in from lunch on a windy dry day, touched a board, and heard the discharge snap audibly through a gate package. Static risk concentrates in cold, dry spells rather than year-round, which is why users in the UK and Illinois both report that winter is the problem season and summer is fine.
Your own body is the charge source. Carpet, plastic flooring and synthetic clothing all build charge, and rubber-soled shoes on carpet make you a very effective capacitor. Wood, concrete, bare feet and cotton socks do not. If you handle MOSFETs, CMOS parts or bare board edges regularly, or work in a dry winter, a grounded mat plus a wrist strap is cheap protection. If you occasionally swap a card in a desktop, the desk is fine.
Solder-Safe vs ESD-Safe: The Tradeoff Nobody Explains
Most solder-safe silicone mats are heat resistant and not verifiably ESD safe, and most cheap anti-static mats are not solder safe. That mutual frustration is the single most repeated complaint in every forum thread on this topic, and it is why buyers end up owning two mats.
The reason sits in the materials. Silicone that tolerates 932F is a thermal insulator by design, and a static dissipative layer needs conductive carbon loading to bleed charge. The two goals pull in opposite directions, so cheap mats usually pick one and skip the other.
The reliable combinations are a rubber ESD mat with a stated heat resistance, such as the Bertech 2059T or the Weller mat, or a two-surface setup where a dissipative mat handles static and a heat-resistant mat handles the iron. The HPFIX silicone kit is the notable budget exception that publishes a resistivity figure and a 932F rating on the same mat.
One habit beats any mat for people who skip them. Touch a grounded metal chassis, such as a PSU shell, before you pick up a board. It drains you first, and it costs nothing.
How to Tell If a Mat Is Actually ESD Safe
Check these six things before you buy. If a listing fails the first one, walk away.
A published surface resistivity figure in ohms. A range like 10^6 to 10^9 is what a real spec looks like. The word ESD safe on its own is not a spec.
A grounding cord in the box. A mat with no cord is a tray, not an ESD control device. Only the StarTech mat in this roundup ships without one.
An adjustable wrist strap. Personnel grounding is what actually protects a component you are holding.
A named material and layer construction. Silicone, rubber, nitrile, PVC foam, and whether a conductive layer sits under the dissipative top.
A stated heat rating. If there is no temperature figure, assume it is not solder safe.
A brand with published specifications and a warranty. iFixit, Weller, Bertech, Static Care and StarTech all publish numbers. That is the whole signal.
Two extra warnings. Peeling a mat off the bench generates charge in the act of lifting it, so unroll it into position rather than peeling it back. And a dusty mat holds charge, so clean it rather than letting solder dust and flux build up.
What to Look For When You Buy an Antistatic Mat
Size is the feature people underspend on. A mat that does not cover your actual work area leaves unprotected ground beside it. Forum advice converges on buying one large mat rather than several small ones. At minimum, cover the zone where boards land and where your hands rest.
Layer construction tells you what you are buying. A dissipative top layer over a conductive bottom layer is the professional pattern. A single-layer black mat is typically conductive, which drains charge fast and is why experts on the EOS/ESD Association forum warn about a personnel shock risk if such a mat is ever energized.
Heat resistance decides whether you need a second mat. Look for a temperature figure rather than the word heat resistant. Silicone kits commonly publish 932F, rubber mats resist hot solder contact, and thin PVC foam does neither well.
Grounding hardware quality is a tell. An undersized snap that does not seat properly is worse than no snap. A 10 mm stud is the standard, and a 15 foot ground cord saves you from an extension lead.
Material choice comes down to your work. Rubber and nitrile hold heat and scuffs best and suit soldering. Silicone tolerates extreme heat and rolls up small. PVC foam is thin, quiet and easy on a desk. Vinyl is the one to be most careful with, because it burns and pits.
ESD Standards in Plain English: ANSI/ESD S20.20 and STM4.1
ANSI/ESD S20.20 is the full ESD control program standard. It covers the whole facility, from flooring and humidity to ionisers and personnel training, and it applies to organisations rather than products. If you run a shop that has to prove a program, that is the standard an auditor will ask about.
ANSI/ESD STM4.1 is the one that matters to you at the bench. It covers worksurfaces and sets the resistance requirement: below 10^9 ohms, measured both point to point across the surface and point to a groundable point. That 10^9 ohm ceiling is the number to remember, because anything above it can hold a charge instead of shedding it.
A working range sits between roughly 10^6 and 10^9 ohms. Below 10^6 you approach conductive behaviour, which drains fast and carries the shock risk if energised. Above 10^9, the mat stores charge. That is why the MWRF mat at 10e9 to 10e10 sits at the edge of usefulness rather than the sweet spot.
One distinction worth keeping straight. Product qualification is the factory test the manufacturer did once. Compliance verification, described in ESD TR53, is the periodic check you do to confirm the mat still meets spec. An expert on the EOS/ESD Association forum made that exact point: qualifying a mat in the factory tells you nothing about its resistance three years later.
That matters because carbon-based conductive layers are brittle and can crack under dry conditions and regular workload, breaking the dissipation path entirely. The same expert recommends a copper foil underlay even on multi-layer mats for that reason.
Grounding, Maintenance and How Long a Mat Lasts
Grounding takes five steps. Unroll the mat in your work area rather than peeling it back, attach the ground cord to a verified earth ground, confirm the snap seats firmly, fit the wrist strap to a bare wrist, and verify with a surface resistance meter if you own one.
For cleaning, use a damp cloth with an approved cleaner. Avoid solvents that swell the surface, keep solder flux off it, and store the mat flat rather than rolled if you can. Grounding hardware is where failures actually happen, so check the cord and snap annually.
Lifespan data is worth knowing. One industrial user on the EOS/ESD Association forum reported a two-layer factory mat that degraded past the 10^9 ohm threshold in about a year, while a single-layer black mat held 10^7 ohms across two years of six-monthly measurements. That is a warning, not a rule, but it argues for periodic verification on any mat you rely on for sensitive work.
Humidity is the variable most buyers ignore. Dry winter air is when static events actually happen, and a dehumidified workshop is worse than a humid one. Keeping relative humidity in a moderate band reduces the problem at the source, which is why ESD programs specify humidity control as part of the facility rather than relying on mats alone.
Frequently Asked Questions
Are anti-static mats safe for electronics?
Yes, provided the mat is grounded and used within its rating. Look for a published surface resistivity between 10^6 and 10^9 ohms. One caveat most sellers skip: single-layer conductive mats drain charge very fast and pose a personnel shock risk if they are ever energised, which is why two-layer dissipative-over-conductive builds are preferred.
What is the best material for anti-static mats?
Rubber and nitrile hold heat, solder and scuffs best and suit professional soldering benches. Silicone tolerates extreme heat and rolls up small, which suits travel kits. Static dissipative PVC foam is thin and quiet and works well on a desktop. Vinyl is the one to avoid for hot work because it burns and pits quickly.
What is the best anti-static mat for computer repair?
For phone and laptop repair, a mat between 16 by 24 and 24 by 27.5 inches with a grounding cord, an adjustable wrist strap and screw compartments covers almost everything. Add heat resistance only if you solder or use hot air on the same surface. The HPFIX silicone kit and the StarTech low-profile mat cover the two ends of that range.
What is the difference between a grounding mat and an ESD mat?
In practice sellers use the terms interchangeably, but there is a real difference. A grounding mat is connected to earth and drains charge away from the surface. An ESD mat describes the material property, meaning it is engineered to dissipate charge. An ESD mat only protects components when it is actually grounded, so the cord and snap matter as much as the mat.
Do ESD mats work?
Yes, when they are grounded and inside their resistivity rating, which should be published in ohms and below the 10^9 ohm ceiling. For most hobby work a wooden desk plus a wrist strap covers the risk, since wood drains charge slowly and safely. A mat matters most for bare semiconductors, MOSFETs and CMOS parts, and most in dry winter conditions.
How do I ground an anti static mat?
Unroll the mat in place, then attach the grounding cord to a verified earth ground point such as an earthed equipment chassis. Confirm the 10 mm snap seats firmly into the mat, fit the wrist strap to a bare wrist, and if you have one, verify the surface with a resistance meter. The Static Care kit includes the snap and outlet adapter needed for this.
Final Verdict: Which Antistatic Mat Should You Buy
The iFixit Portable Anti-Static Mat is our default recommendation in 2026. It publishes a real resistivity range, ships a proper 10 mm snap and an adjustable wrist strap, and folds down small enough to move between benches. For most people buying one of the best antistatic mats for electronics work, that combination is the shortest path to a properly grounded bench.
Buy the HPFIX silicone kit instead if your bench sees a soldering iron regularly and your boards are phone or laptop sized. Buy the StarTech mat if you want a thin, unobtrusive surface on a desk and will source your own wrist strap. Buy a Bertech or Weller rubber mat when the bench is permanent and heat and longevity matter more than price.
Whatever you pick, ground it, wear the strap, and check that the resistivity figure is printed rather than implied. If you are setting up a full electronics bench, our guides to soldering stations, USB microscopes for electronics repair and workshop lighting cover the rest of the workstation, and the last one matters more than people expect for board-level work.
